EUCLEIA TabScan S7D Auto Intelligent Dual-mode Diagnostic System

EUCLEIA TabScan S7D Auto Intelligent Dual-mode Diagnostic System

New Upgrade: More inside storages, New UI design, Support phone App.

TabScan S7D Features And Advantages:

Innovative dual-mode diagnostic system ,Original manufacturer diagnosis and universal diagnosis,perfect solution for workshops.
Intelligent searching patent, tenfold faster than normal diagnosis.
Humanity button,real-time voltage and connection display, one-click reading VIN code.
Provide DTC searching, remote assistance, workshop management and other convenient  service.
Feedbacks automatically send to server which makes service more easier.

TabScan S7D Major Functions:

Mode One: Universal Diagnosis
Diagnostic function: Read and clear DTC, live data, active test, ECU information, freeze frame etc.
Service functions: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset,  SAS   Reset, Battery Reset, CVT Reset, TPMS, etc.
Coding function: Brush hiding functions (for V-W,for Audi,for Skoda and constantly adding)
System functions: The system also includes the most recent auto-VIN technology that identifies vehicles with one touch and exclusive auto-scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.
Mode Two: Original Manufacturer Diagnosis
Numerous brands, accurate diagnosis, coding ,on-line programming, date searching etc.

TabScan S7D Models Support:

Software Models
for Toyota,for Lexus,for Scion TIS
for Honda,for Acura HDS
for Volvo VIDA
for V-W,for Audi,for Seat,for Skoda, for Bentley,for Lamborghini ODIS
for Jaguar,for Land Rover SDD
for Ford For  IDS
for Mazda FORScan
for GM GDS2
for  Smart,for Maybach,for Benz, for Sprinter Xentry Passthru
for BMW,for Mini ISTA/D/P



TabScan S7D Main Parameters:

Model TabScan S7W
Processor 1.3 GHz quad-core
RAM 2GB
External Storage Maxium 32GB
Screen Size 7-inch display screen
Upgrade Method Wifi
Charging method USB cable
Model TabScan S7W
Processor 1.3 GHz quad-core
Operation System Android 4.4.2+EUUI2.12
Battery capacity 7500mAh lithium-polymer
ROM 16GB
Interface Micro USB2.0
Resolution 1024×600 pixels
Connectivity Bluetooth
Diagnostic method wiScan wireless
Diagnostic connectors Gold Cup/for  Cherry/for Changan 3 ,for Nissan-14,for KIA-20,for Honda-3,forToyota-17,for Mazda-17
Processor ARM 32bit Cortex M3
Flash 512KB
RAM 128KB
Adaptable OS Windows Xp、win7、win8、win10
Communication port DB15,Double row joint
Connection USB Type-B,USB 2.0, FS
Wireless Bluetooth3.0/4.0
Connection Method Main cable with car, USB with PC, Bluetooth with tablet
Standard * Compatible with SAE-J2534-1 and SAE-J2534-2
*On-line ECU diagnosis, support OEM software
* Compatible with J2534
Protocol SAE-J2534-1 and SAE-J2534-2
ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 K-Line
ISO-11898 DWCAN
SAE-J1850-VPW(for GM Class2)
SAE-J1850-PWM(for FORD SCP)
SAE-J2411 Single Wire CAN(for GMLAN)
SAE-J2610 SCI(for Chrysler)
SAE-J2740 for GM ALDL
SAE-J2809 (for HONDA DIAG-H)
for V-A-G TP16 CAN
for V-A-G TP20 CAN(SAE J2819)
for V-A-G KW81(SAE J2818)
for BMW DS2
for FORD UBP

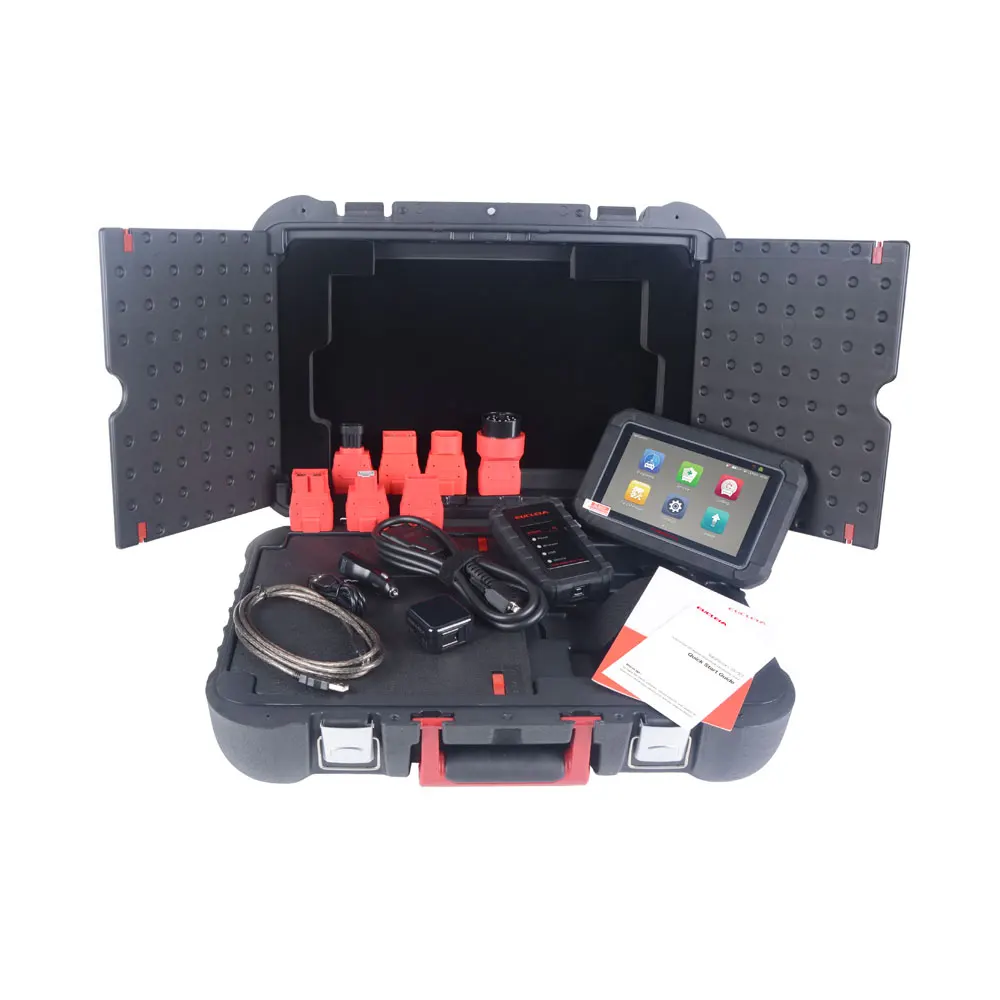

Package includes:

1pc x TabScan S7D
1pc x wiScan T6
1pc x Main Cable
1pc x for Gold Cup for Chery for changan Fiat3
1pc x for Nissan14
1pc x for KIA20
1pc x for Honda3
1pc x for Toyota17
1pc x for BMW20
1pc x for Mazda17
1pc x USB connector cable
1pc x Dual USB charger
1pc x AC/DC adapter
1pc x Warranty card
1pc x User manual
1pc x Fitting box
