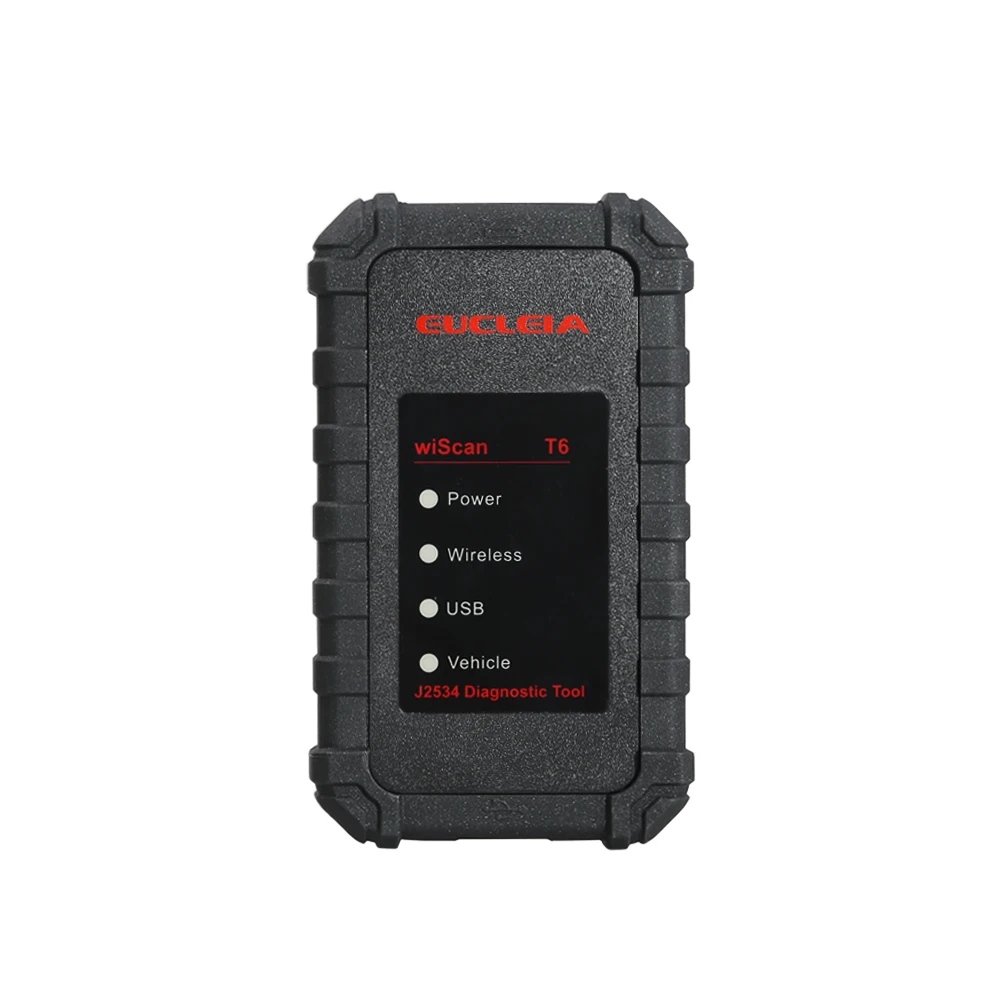

EUCLEIA wiScan T6 J2534 Diagnostic Tool

EUCLEIA wiScan T6 J2534 Diagnostic Tool

wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major original manufacturer diagnosis software and function. wiScan T6 is a professional,reliable, fast, flexible and with wide adaptation diagnostic device.



SAE J2534 is a standard devised of two independent parts: subscription software and a J2534 compliant Pass Thru vehicle interface. The subscription software comes directly from the automaker, runs on your shop PC or laptop, and can either be web-based or CD-based. The subscription fees are charged differently for each automaker.
EUCLEIA wiScan T6 Features:
Compatible with J2534 standard interfaces
T6 Supports numerous OEM diagnostic software such as Volkswagen, Jaguar Land Rover,
Volvo, Honda, Toyota, Ford, Mazda, GM, etc.
Equipped with high performance processor and perfectly compatible with the original
diagnosis function
Network upgrades support
Rugged design can be used in a variety of harsh environments
EUCLEIA wiScan T6 Function List:
Supports OEM diagnostic software and diagnostic function

EUCLEIA wiScan T6 Car Model and Software Support:

Brand Models Software
Toyota Toyota、Lexus、Scion Techstream
Honda Honda、Acura HDS
Volvo Volvo VIDA
VW
Volkswagen、 Audi、 Seat,
Skoda、Bentley、
Lamborghini
ODIS
GM GM GDS2
Mazda Mazda Mazda IDS
Ford Ford Ford IDS
JLR Jaguar、Land Rover SDD

Note: 24V model is not supported.

EUCLEIA wiScan T6 System Support:
System support: windowsXp、 win7、 win8、 win10and follow-up version of the 32 bit or 64 bit operating system.
EUCLEIA wiScan T6 Specifications:

Processor ARM 32bit Cortex M3
Flash 512KB
RAM 128KB
Connectivity USB Type-B,USB 2.0
Interface DB15, Double row joint
Connection mode
The main test line connected with the car, and USB
connected with PC
Standard
*Fully compatible with SAEJ2534-1 and SAE J2534-2
*Supports OEM Diagnostics software
Support protocols
ISO9141(K-Line)
ISO14230-2 (K-Line)
ISO15765 (CAN)
SAE-J1850 PWM (Ford SCP)
SAE-J1850 VPW (GM Class2)
Single line CAN(GMLAN)
Packing size ( mm) 292mm*205mm*80mm
Product dimension ( mm) 145mm*85mm*29mm
Net Weight 200g
Gross weight 1100g
EUCLEIA wiScan T6 Working Environment:
Input voltage:                      7~18V DC
Working current:                <300mA@DC 12V
Working temperature:        -20~70 degrees Celsius
Storage humidity:               <80%
Storage temperature:          -40 to 80°C (-4 to 158 °F)
Housing:                              Rubberized external and rugged internal protection

EUCLEIA wiScan T6 Package Includes:

1pc x  wiScan T6
1pc x USB cable
1pc x CD driver
1pc x Quick start guide
1pc x Main line
1pc x Tool box
1pc x Warranty card
